Rated operating current Ie at DC-13, 230 V0.27 A
Rated operating current Ie at DC-13, 125 V0.55 A
HAN6188137005
GTIN4024337080524
Number of contacts as normally open1
Number of contacts as opener1
Number of safety-related auxiliary contacts1
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the actuating elementRod lever
Design of the electrical connectionCable entry (metric)
Rated operating current Ie at AC-15, 230 V3 A
Width of the sensor30 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Housing designCuboid
Weight0,08
Weight unit kg
Height of the sensor27 mm

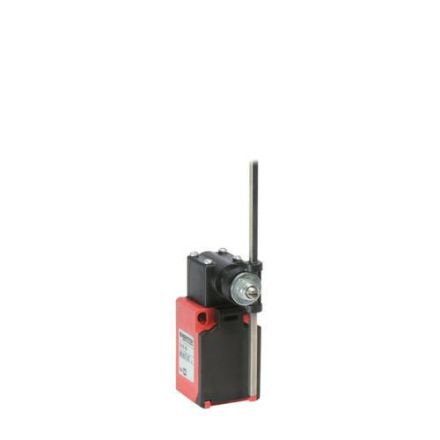

Short descriptionPosition switch plastic, slow action system, 1 NC/1 NO, cable entry 1 x M16 x 1.5, with rod lever (90° rotated)
Length of the sensor58 mm
Switching functionSlow-action switching element
IP protection)IP65
Statistical commodity code85365011
Ambient temperature during operation-30 - 80 °C
Housing materialPlastic
