Amber 6310118727 MAM-1811-D-2

In stock

SKU: 1058693

Price on request

€32.84

€0

Overview

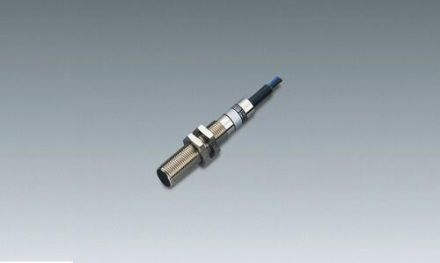

Electromechanical magnetic switches are based on reed contacts, which change their electrical behavior when an actuating magnet approaches them. The universal current-compatible switches are available as normally open, normally closed, changeover and bistable switches.

Property	Value
Protection class (IP):	IP67
Voltage type:	AC/DC
Housing material:	Brass
Weight unit:	KG
Commodity statistical number:	85365011
Ambient temperature:	-5 - 70 °C
Rated supply voltage at AC 50 Hz:	125 V
Rated supply voltage at AC 60 Hz:	125 V
Rated supply voltage at DC:	175 V
Housing coating:	nickel-plated
Switching distance:	29 mm
Number of contact outputs with signaling function:	1
Design of the electrical connection:	cable
Design of the switching output:	reed contact
Explosion protection category for gas:	none
Explosion protection category for dust:	none
Housing design:	cylinder, thread
Secured switching distance ON:	29 mm
Type of actuation:	Magnet
Diameter of the sensor:	12 mm
Length of the sensor:	60.5 mm
Protection class (NEMA):	4
