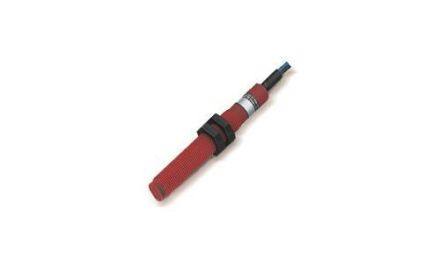

Bernstein 6314233708 MAK-3312-A-2 Magnet

In stock
SKU: 1058356
€35.42
Into a basketIn the basketGo

Overview

Electromechanical magnetic switches are based on reed contacts, which change their electrical behavior when an actuating magnet approaches them. The universal current-compatible switches are available as normally open, normally closed, changeover and bistable switches.

PropertyValue
Protection class (IP):IP67
Voltage type:AC/DC
Housing material:Plastic
Weight unit:KG
Commodity statistical number:85365011
Type of electrical connection:Cable
Explosion protection category for gas:without
Explosion protection category for dust:without
Type of Actuation:Magnet
Ambient temperature:-5 - 70 °C
Rated supply voltage at AC 50 Hz:250 V
Rated supply voltage at AC 60 Hz:250 V
Rated supply voltage at DC:250 V
Switching distance:7 mm
Number of contact outputs with signaling function:1
Design of the switching output:Reed contact
Housing design:Cylinder, thread
Secured Switching distance ON:7 mm
Sensor diameter:12 mm
Sensor length:80 mm
Protection class (NEMA):4

Characteristics

Diameter of the sensor12 mm
Rated supply voltage for DC250 V
Secured switching distance ON7 mm
ManufacturerBernstein
HAN6314233708
GTIN4024337064180
Type of operationMagnet
Design of the switching outputReed contact
Design of the electrical connectionCable
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Housing designCylinder, thread
Weight unit kg
Length of the sensor80 mm
Switching distance7 mm
IP protection)IP67
Protection class (NEMA)4
Voltage typeAC/DC
Statistical commodity code85365011
Ambient temperature-5 - 70 °C
Housing materialPlastic
