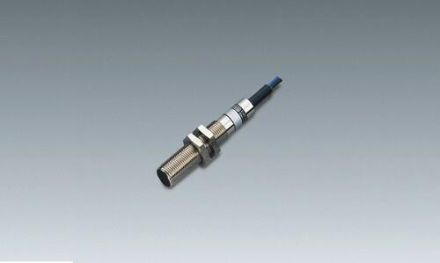

Amber 6316318653 MAM-1813-L-3

In stock

SKU: 1058075

Price on request

€55.22

€0

Overview

Electromechanical magnetic switches are based on reed contacts, which change their electrical behavior when an actuating magnet approaches them. The universal current-compatible switches are available as normally open, normally closed, changeover and bistable switches.

Property	Value
Protection class (IP):	IP67
Voltage type:	AC/DC
Housing material:	Brass
Weight:	0.12
Weight unit:	KG
Commodity statistical number:	85365011
Ambient temperature:	-5 - 70 °C
Rated supply voltage at AC 50 Hz:	250 V
Rated supply voltage at AC 60 Hz:	250 V
Rated supply voltage for DC:	250 V
Housing coating:	nickel-plated
Switching distance:	10 mm
Number of contact outputs with signaling function:	1
Design of the electrical connection:	cable
Design of the switching output:	reed contact
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, Thread
Secured switching distance ON:	10 mm
Type of actuation:	Magnet
Diameter of the sensor:	12 mm
Length of the sensor:	60.5 mm
