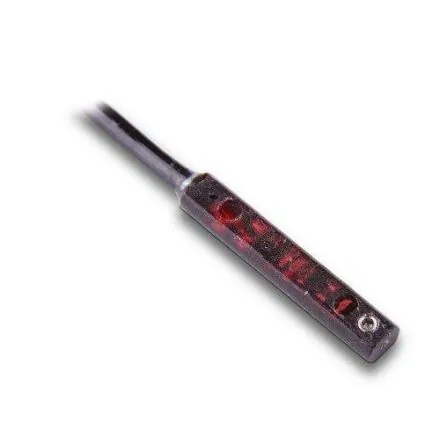

Amber 6370281183 MEK-E22PS/HP2-KL2

In stock

SKU: 1057359

Price on request

€113.61

€0

Overview

Electronic slot sensors from BERNSTEIN in aluminum or plastic housings are characterized by extreme insensitivity to vibration, shock or impact as well as long switching distances. The miniature position sensors are suitable for installation in a slot, on pneumatic cylinders or drives.

Property	Value
Protection class (IP):	IP67
Voltage type:	DC
Housing material:	Plastic
Weight:	0.01
Weight unit:	KG
Commodity statistical number:	85365011
Ambient temperature:	-20 - 80 °C
Rated supply voltage at DC:	10 - 30 V
With Status display:	yes
Number of semiconductor outputs with signaling function:	2
Design of the electrical connection:	Cable
Design of the switching output:	PNP
Explosion protection category for gas:	none
Explosion protection category for dust:	none
Cross-circuit/short-circuit detection possible:	yes
Type of actuation:	Magnet
Width of the sensor:	3.9 mm
Height of the sensor:	3.1 mm
Length of the Sensors:	22 mm
