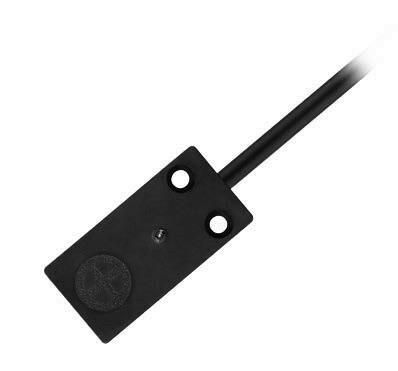

Amber 6372290081 MEK-E50PS/H10-KL2

In stock
SKU: 1057979
€71.21
Into a basketIn the basketGo

Overview

Electronic magnetic switches with magnetoresistive elements or Hall elements detect an actuating magnet without contact. The electronic versions are characterized by extreme insensitivity to vibration, shock or impact as well as long switching distances.

PropertyValue
Protection class (IP):IP67
Voltage type:DC
Housing material:Plastic
Weight:0.02
Weight unit:KG
Commodity statistical number:85365011
Design of the electrical connection:Cable
Design of the switching output:PNP
Explosion protection category for Gas:without
Explosion protection category for dust:without
Ambient temperature:-25 - 70 °C
Rated supply voltage for DC:10 - 39 V
With status display:yes
Switching distance:17 mm
Number of semiconductor outputs with signaling function:1
Secured switching distance ON:17 mm
Cross-circuit/short-circuit detection possible:yes
Type of actuation:Magnet
Width of the sensor:25 mm
Height of the sensor:10.1 mm
Length of the sensor:50 mm

Characteristics

Rated supply voltage for DC10 - 39 V
Secured switching distance ON17 mm
ManufacturerBernstein
HAN6372290081
GTIN4024337081385
Type of operationMagnet
Design of the switching outputPNP
Design of the electrical connectionCable
Width of the sensor25 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Weight0,02
Weight unit kg
Height of the sensor10.1 mm
Length of the sensor50 mm
With status displayYes
Switching distance17 mm
IP protection)IP67
Voltage typeDC
Statistical commodity code85365011
Ambient temperature-25 - 70 °C
Housing materialPlastic
