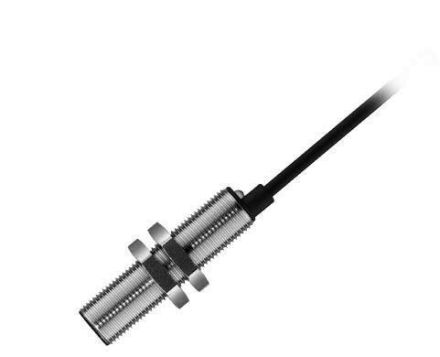

Amber 6373262123 MEM-M12PS/M01-KL5

In stock

SKU: 1058196

Price on request

€92.76

€0

Overview

Electronic magnetic switches with magnetoresistive elements or Hall elements detect an actuating magnet without contact. The electronic versions are characterized by extreme insensitivity to vibration, shock or impact as well as long switching distances.

Property	Value
Protection class (IP):	IP67
Voltage type:	DC
Housing material:	Brass
Weight:	0.1
Weight unit:	KG
Commodity statistical number:	85365011
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Ambient temperature:	-25 - 70 °C
Rated supply voltage for DC:	10 - 39 V
Housing coating:	nickel-plated
With status display:	yes
Switching distance:	45 mm
Number of semiconductor outputs with signaling function:	1
Design of the electrical connection:	Cable
Design of the switching output:	PNP
Housing design:	Cylinder, thread
Secured switching distance ON:	45 mm
Cross-circuit/short-circuit detection possible:	yes
Type of actuation:	Magnet
Diameter of the sensor:	12 mm
Length of the sensor:	46 mm
