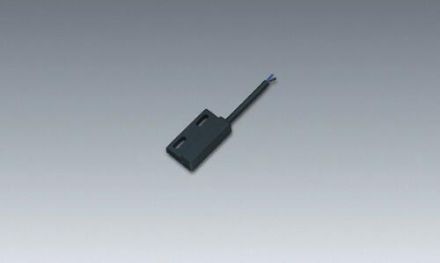

Bernstein 6411211384 MAK-1112-B-5 Magnet

In stock
SKU: 1059025
€41.39
Into a basketIn the basketGo

Overview

Electromechanical magnetic switches are based on reed contacts, which change their electrical behavior when an actuating magnet approaches them. The universal current-compatible switches are available as normally open, normally closed, changeover and bistable switches.

PropertyValue
Protection class (IP):IP67
Voltage type:AC/DC
Housing material:Plastic
Weight:0.07
Weight unit:KG
Commodity statistical number:85365011
Type of electrical connection:Cable
Explosion protection category for gas:without
Explosion protection category for dust:without
Type of Actuation:Magnet
Ambient temperature:-5 - 70 °C
Rated supply voltage at AC 50 Hz:230 V
Rated supply voltage at AC 60 Hz:230 V
Rated supply voltage at DC:230 V
Switching distance:10 mm
Number of contact outputs with signaling function:1
Design of the switching output:Reed contact
Secured switching distance OFF:22 mm
Secured switching distance ON:10 mm
Sensor width:18 mm
Sensor height:6.4 mm
Sensor length:28.6 mm

Characteristics

Rated supply voltage for DC230 V
Secured switching distance ON10 mm
ManufacturerBernstein
HAN6411211384
GTIN4024337008597
Type of operationMagnet
Design of the switching outputReed contact
Design of the electrical connectionCable
Width of the sensor18 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Weight0,07
Weight unit kg
Height of the sensor6.4 mm
Length of the sensor28.6 mm
Switching distance10 mm
IP protection)IP67
Voltage typeAC/DC
Statistical commodity code85365011
Ambient temperature-5 - 70 °C
Housing materialPlastic
