Bernstein 6490642046 MAK-4256-3 Magnet

In stock

SKU: 1058885

Price on request

€54.31

€0

Overview

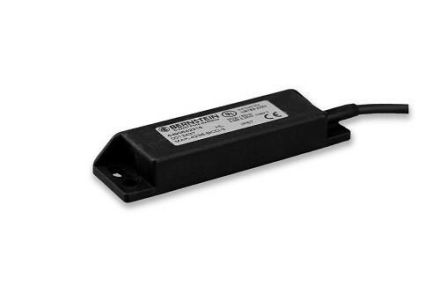

Coded magnetic switch, 2 NO contacts in the safety circuit and 1 NC contact as signal contact, housing - plastic, 3 m cable. With suitable evaluation (e.g. BERNSTEIN MÜZ) suitable for use in safety applications according to DIN EN 14119.

Property	Value
Protection class (IP):	IP67
Voltage type:	DC
Housing material:	Plastic
Weight:	0.12
Weight unit:	KG
Commodity statistical number:	85365011
Suitable for safety functions:	yes
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Type of Actuation:	Magnet
Width of sensor:	25 mm
Height of sensor:	13 mm
Length of sensor:	88 mm
Ambient temperature:	-5 - 70 °C
Rated supply voltage for DC:	120 V
Switching distance:	4 mm
Number of contact outputs with signaling function:	1
Number of safe contact outputs:	2
Design of the electrical Connection:	Cable
Design of the switching output:	Reed contact
Secured switching distance OFF:	17 mm
Secured switching distance ON:	4 mm
Max. output current at the safe output:	180 mA
Cross-circuit/short-circuit detection possible:	yes
