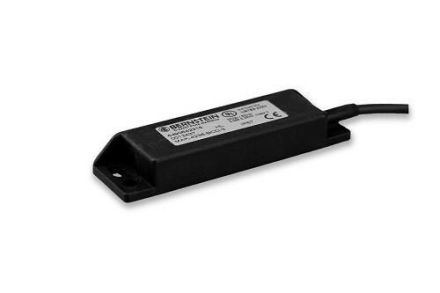

Bernstein 6490642315 MAK-4236-3 TUV

In stock
SKU: 1059151
€54.31
Into a basketIn the basketGo

Overview

Coded magnetic switch, 1 normally open and 1 normally closed in the safety circuit, housing - plastic, 3 m cable. With suitable evaluation (e.g. BERNSTEIN MÜZ) suitable for use in safety applications according to DIN EN 14119.

PropertyValue
Protection class (IP):IP67
Voltage type:DC
Housing material:Plastic
Weight:0.13
Weight unit:KG
Commodity statistical number:85365011
Suitable for safety functions:yes
Explosion protection category for gas:without
Explosion protection category for dust:without
Type of Actuation:Magnet
Width of the sensor:25 mm
Height of the sensor:13 mm
Length of the sensor:88 mm
Ambient temperature:-5 - 70 °C
Rated supply voltage at DC:30 V
Switching distance:5 mm
Number of safe contact outputs:2
Design of the electrical connection:Cable
Design of the Switching output:Reed contact
Secured switching distance OFF:14 mm
Secured switching distance ON:5 mm
Max. output current at safe output:80 mA
Cross-circuit/short-circuit detection possible:yes

Characteristics

Rated supply voltage for DC30 V
Secured switching distance ON5 mm
ManufacturerBernstein
HAN6490642315
GTIN4024337081880
Type of operationMagnet
Design of the switching outputReed contact
Design of the electrical connectionCable
Width of the sensor25 mm
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Suitable for security functionsYes
Weight0,13
Weight unit kg
Height of the sensor13 mm
Length of the sensor88 mm
Switching distance5 mm
IP protection)IP67
Voltage typeDC
Statistical commodity code85365011
Ambient temperature-5 - 70 °C
Housing materialPlastic
