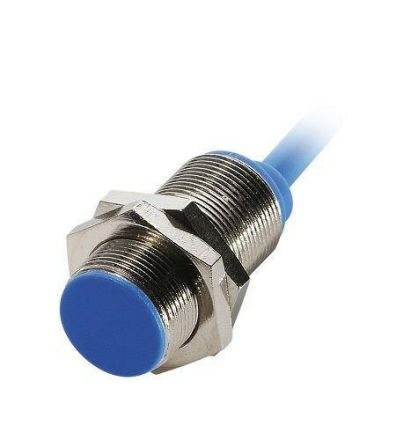

Bernstein 6501624001 KIB-M12EA/002-6 EB Initiator

In stock

SKU: 1057143

Price on request

€71.60

€0

Overview

Inductive proximity switches According to DIN EN 60947-5-6, they detect the presence of metallic, electrically conductive objects in their measuring field without contact and change their current consumption depending on the object distance.

Property	Value
Voltage type:	DC
Housing material:	metal
Weight:	0.14
Weight unit:	KG
Statistical commodity number:	85365011
Housing coating:	nickel-plated
Switching distance:	2 mm
Interface design for safety-related communication:	without
Electrical connection design:	Cable
Design of Switching output:	NAMUR
Design of the switching function:	other
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Mechanical installation condition for sensor:	flush
Type of actuation:	metallic target
Design of the interface:	without
Diameter of the sensor:	12 mm
Length of the sensor:	31 mm
Switching frequency:	800 Hz
Performance level according to EN ISO 13849-1:	without
SIL according to IEC 61508:	without
Rated control supply voltage Us at DC:	25 - 5 V
