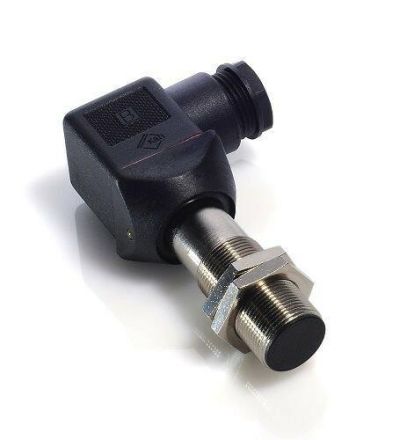

Amber 6502739001 KIB-M30PÖ/010-KLSD

In stock

SKU: 1058583

Price on request

€113.64

€0

Overview

Inductive proximity switches according to DIN EN 60947-5-2. They detect the presence of metallic, electrically conductive objects in their measuring field without contact. The robust sensors can be used in a variety of ways in industry, e.g. in speed applications or for position determination.

Property	Value
Voltage type:	DC
Housing material:	metal
Weight:	0.25
Weight unit:	KG
Statistical commodity number:	85365011
Housing coating:	nickel-plated
Switching frequency:	300 Hz
Switching distance:	10 mm
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	other
Design of the switching output:	PNP
Design of the switching function:	NC contact
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Mechanical installation condition for sensor:	flush
Type of actuation:	metallic target
Design of the interface:	without
Length of the sensor:	112.4 mm
Diameter of the Sensors:	30 mm
Performance Level according to EN ISO 13849-1:	without
SIL according to IEC 61508:	without
Rated control supply voltage Us at DC:	10 - 60 V
