Amber 6502780002 KIB-Q08PÖ/1,5-KLSM8

In stock

SKU: 1057605

Price on request

€97.80

€0

Overview

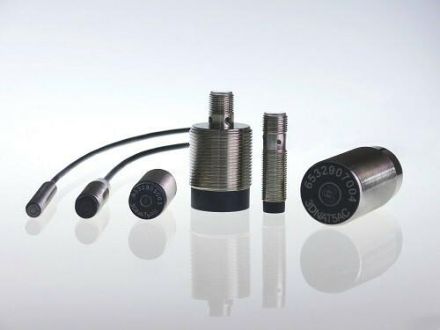

Inductive proximity switches according to DIN EN 60947-5-2. They detect the presence of metallic, electrically conductive objects in their measuring field without contact. The robust sensors can be used in a variety of ways in industry, e.g. in speed applications or for position determination.

Property	Value
Voltage type:	DC
Housing material:	metal
Weight:	0.02
Weight unit:	KG
Statistical commodity number:	85365011
Housing coating:	nickel-plated
Switching frequency:	1000 Hz
Switching distance:	1.5 mm
Design of the interface for safety-related communication:	without
Design of the electrical connection:	M8 connector
Design of the switching output:	PNP
Design of the switching function:	NC contact
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cuboid
Mechanical installation condition for sensor:	flush
Type of actuation:	metallic target
Design of the interface:	without
Width of the sensor:	8 mm
Height of the Sensors:	8 mm
Sensor length:	47 mm
Performance level according to EN ISO 13849-1:	without
SIL according to IEC 61508:	without
Rated control supply voltage Us at DC:	10 - 30 V
