Amber 6503504001 KIN-M12AS/004-L2

Amber 6503504001 KIN-M12AS/004-L2

In stock

SKU: 1057571

Price on request

€113.99

€0

Overview

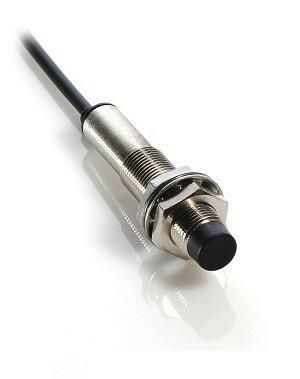

Inductive proximity switches according to DIN EN 60947-5-2. They detect the presence of metallic, electrically conductive objects in their measuring field without contact. The robust sensors can be used in a variety of ways in industry, e.g. in speed applications or for position determination.

Property	Value
Voltage type:	AC
Housing material:	metal
Weight:	0.06
Weight unit:	KG
Statistical commodity number:	85365011
Housing coating:	nickel-plated
Switching frequency:	10 Hz
Switching distance:	4 mm
Design of the interface for safety-related communication:	without
Design of the electrical Connection:	Cable
Design of the switching output:	2-wire
Design of the switching function:	Normally open contact
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cylinder, thread
Mechanical installation condition for sensor:	not flush
Type of actuation:	metallic target
Design of the interface:	without
Diameter of the sensor:	12 mm
Length of the sensor:	66.5 mm
Performance Level according to EN ISO 13849-1:	without
SIL according to IEC 61508:	without
Rated control supply voltage Us at AC 50 Hz:	250 - 76 V
Rated control supply voltage Us at AC 60 Hz:	250 - 76 V
