Bernstein 6506623001 KCN-T30ES/015-L2 B

In stock

SKU: 1058854

Price on request

€72.34

€0

Overview

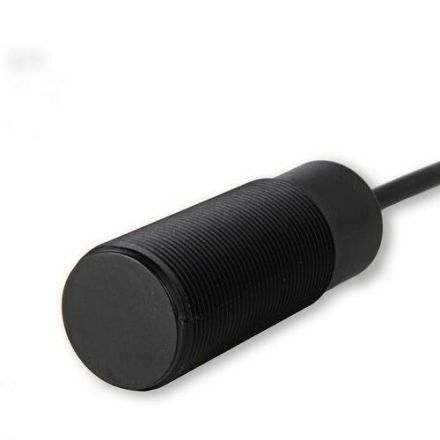

Capacitive proximity switch with characteristic features according to DIN EN 60947-5-6. The sensor detects conductive and non-conductive materials that can be in a solid or liquid state and is therefore used to measure the fill level in containers as well as to detect and monitor objects.

Property	Value
Voltage type:	DC
Housing material:	plastic
Weight:	0.13
Weight unit:	KG
Housing coating:	other
Switching frequency:	100 Hz
Switching distance:	15 mm
Design of the interface for safety-related communication:	without
Design of the electrical connection:	cable
Design of the Switching output:	NAMUR
Switching function design:	Normally open
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	Cylinder, thread
Mechanical installation condition for sensor:	not flush
Type of actuation:	other
Interface design:	without
Sensor diameter:	30 mm
Sensor length:	87.5 mm
Performance Level according to EN ISO 13849-1:	without
With status display:	yes
SIL according to IEC 61508:	without
Rated control supply voltage Us at DC:	25 - 5 V
