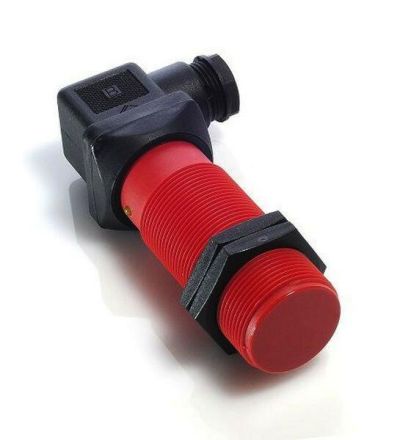

Amber 6507915002 KCN-R34PP/030-KLPSD

In stock
SKU: 1059035
€241.09
Into a basketIn the basketGo

Overview

Capacitive proximity switches according to DIN EN 60947-5-2 detect conductive and non-conductive materials that can be in a solid or liquid state. They are used to measure the fill level in containers and to detect and monitor objects.

PropertyValue
Voltage type:DC
Housing material:plastic
Weight:0.13
Weight unit:KG
Statistical commodity number:85365011
Housing coating:other
Switching frequency:25 Hz
Switching distance:30 mm
Design of the interface for safety-related communication:without
Design of the electrical Connection:other
Design of the switching output:PNP
Design of the switching function:programmable/configurable
Explosion protection category for gas:without
Explosion protection category for dust:without
Housing design:smooth cylinder
Mechanical installation condition for sensor:not flush
Type of actuation:other
Design of the interface:without
Diameter of the sensor:34 mm
Length of the Sensors:122.5 mm
Performance Level according to EN ISO 13849-1:without
With status display:yes
SIL according to IEC 61508:without
Rated control supply voltage Us at DC:10 - 60 V

Characteristics

Diameter of the sensor34 mm
Mechanical installation condition for sensorNot flush
Design of the switching functionProgrammable/configurable
Switching frequency25 Hz
ManufacturerBernstein
HAN6507915002
GTIN4024337006289
Type of operationOther
Implementation of the interfaceWithout
Design of the interface for safety-related communicationWithout
Design of the switching outputPNP
Design of the electrical connectionOther
Rated control supply voltage Us at DC10 - 60V
Housing coatingOther
Explosion protection category for gasWithout
Explosion protection category for dustWithout
Housing designCylinder smooth
Weight0,13
Weight unit kg
Length of the sensor122.5 mm
With status displayYes
Performance Level according to EN ISO 13849-1Without
SIL according to IEC 61508Without
Switching distance30 mm
Voltage typeDC
Statistical commodity code85365011
Housing materialPlastic
