Amber 6522904023 6522904023 KIN-M12PS/004-KL2D

In stock

SKU: 1059719

Price on request

€69.23

€0

Overview

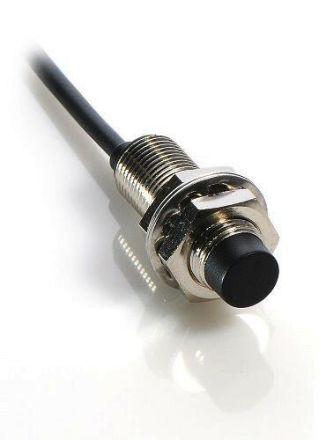

Inductive sensors for potentially explosive areas. According to DIN EN 60947-5-2, they detect the presence of metallic, electrically conductive objects in their measuring field without contact. Protection against ignitable energies is achieved through the principle of intrinsic safety.

Property	Value
Voltage type:	DC
Housing material:	metal
Weight:	0.08
Weight unit:	KG
Housing coating:	nickel-plated
Switching frequency:	450 Hz
Switching distance:	4 mm
Design of the interface for safety-related communication:	without
Design of the electrical connection:	cable
Design of the Switching output:	PNP
Switching function design:	Normally open
Explosion protection category for gas:	without
Explosion protection category for dust:	ATEX dust explosion protection, cat. 2D
Housing design:	cylinder, thread
Mechanical installation condition for sensor:	not flush
Type of actuation:	metallic target
Interface design:	without
Sensor diameter:	12 mm
Sensor length:	55 mm
Performance Level according to EN ISO 13849-1:	without
SIL according to IEC 61508:	without
Rated control supply voltage Us at DC:	10 - 30 V
Protection class (NEMA):	1
