Amber 6532942004 KIN-M08PS/002-

In stock

SKU: 1058921

Price on request

€61.70

€0

Overview

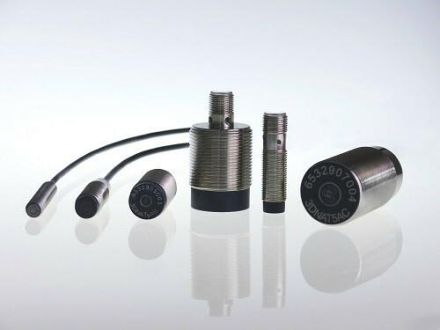

Inductive proximity switches according to DIN EN 60947-5-2. They detect the presence of metallic, electrically conductive objects in their measuring field without contact. The robust, UL-certified sensors can be used in a variety of industrial applications, e.g. in speed applications or for position determination. Additional configurations such as teaching the switching distance and changing the switching function can be implemented via IO-Link.

Property	Value
Voltage type:	DC
Housing material:	metal
Weight:	0.03
Weight unit:	KG
Housing coating:	other
Switching frequency:	750 Hz
Switching distance:	2 mm
Design of the interface for safety-related communication:	without
Design of the electrical connection:	Connector M8
Design of the Switching output:	PNP
Switching function design:	Normally open
Explosion protection category for gas:	without
Explosion protection category for dust:	without
Housing design:	cylinder, thread
Mechanical installation condition for sensor:	not flush
Type of actuation:	metallic target
Interface design:	other
Sensor diameter:	8 mm
Sensor length:	50 mm
Performance Level according to EN ISO 13849-1:	without
SIL according to IEC 61508:	without
Protection class (NEMA):	1
Rated control supply voltage Us at DC:	10 - 30 V
