ASTRO Strobel 00750985 CSA9516/500 underground cable

In stock
SKU: 990867
€2.76
Into a basketIn the basketGo

Overview

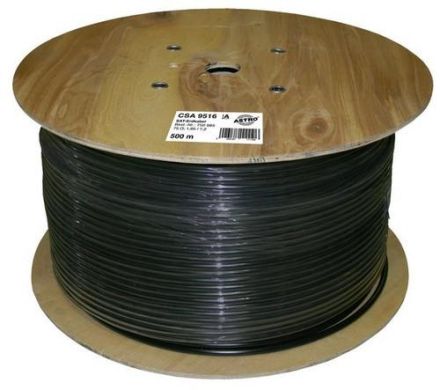

Earth coaxial cable, triple shielded, 500 m drum, 1.65 mm solid copper inner conductor, tinned copper braid, 10.1 mm PE black sheath, Class A

PropertyValue
Sheath color:black
Outer diameter approx.:10.1 mm
Dielectric:Polyethylene, foamed (Foam PE)
Outer conductor form:Foil + braid
Characteristic impedance:75 Ohm
Inner conductor diameter:1.65 mm
Outer conductor diameter:7.2 mm
Inner conductor class:Cl.1 = single-wire
Reinforcement:no
Inner conductor surface:bare
Outer conductor surface:tinned
Number of shielding layers:2
Specification of sheath material:Polyethylene (PE)
Min. permissible bending radius, stationary use/fixed installation:60 mm
Laying in the ground:yes

Characteristics

Outer diameter approx.10.1 mm
HABCSA9516/500
Minimal order500 meters
ManufacturerASTRO Strobel
HAN00750985
GTIN4026187111106
Coat colorBlack
ASTRO Strobel 00750985 CSA9516/500 underground cable
