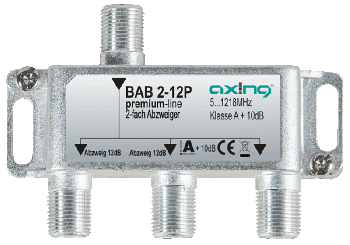

Premium line splitter suitable for multimedia with hum-suppressed inputs and outputs. With a frequency range of up to 1218 MHz, the device is suitable for DOCSIS 3.1 applications (up to 10 GBit/s in the cable network). The splitter is characterized by high return loss and high intermodulation resistance (according to EN 60728-4). High shielding properties (class A + 10 dB, according to EN 50083-2) ensure interference-free transmission of the signals. The F-sockets guarantee a fast, secure connection. The return loss and decoupling are guaranteed in accordance with VFKD TS 220. The dimensions are approx. 70 x 55 x 25 mm.
| Property | Value |
| Design: | Branch |
| Max. throughput loss: | 2.4 dB |
| Max. branch/distributor loss: | 12.9 dB |
| Connection type: | F-Connector |
| Frequency: | 5 to 1218 MHz |
| Number of branches: | 2 |
| Number of outputs: | 1 |
