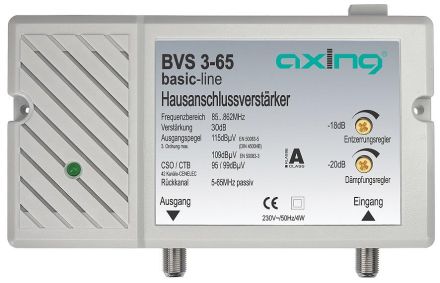

Axing BVS00365 house connection amplifier 30 dB,

In stock
SKU: 1393
€68.76
Into a basketIn the basketGo

Overview

Basic-line house connection amplifier for amplifying signals from cable connections or antenna systems with return channels. The amplifier output can be precisely regulated using an adjustable attenuation control, as can the equalization. The device has a practical LED operating display. The dimensions are approx. 160 x 100 x 45 mm.

PropertyValue
Number of inputs:1
Number of outputs:1
Amplification (terr./cable):30 dB
Frequency range (terr.):85 - 862 MHz
Functions:digital compatible, adjustable attenuation, adjustable equalization, LED display
Connection types:F-connector, ground connection
Noise figure:7 dB
Dimensions:160 x 100 x 45 mm
Color:gray
DVB standards:DVB-C, DVB-C2
EMC standard:EN 50083-2
Power consumption:6 watts
Attenuation range:0 - 20 dB
Equalization range:0 - 18 dB
Frequency range return channel:5 - 65 MHz
Output level:98 dB?V
Features:Equalizer / return channel / built-in Power supply

Characteristics

EquipmentEqualizer / return channel / built-in power supply
Number of outputs1
Number of inputs1
Power consumption6 Watt
ManufacturerAxing
HANBVS00365
GTIN7611682034035
Dimensions160x100x45 mm
ColorGray
