Bachmann 131.080 connecting cable transparent FEP/PVC 3x1.5 1.5m

In stock

SKU: 299855

Price on request

€17.93

€0

Overview

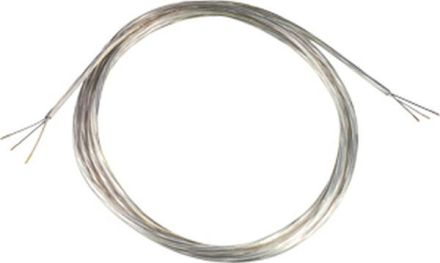

Sections of double insulated cable FEP T180°C + PVC 105°C 450/750V transparent earth conductor thread green-yellow feed cable 3x1.5mm Lg: 1.5m S1+S2:40mm/AE outer diameter approx. 6.2 mm individually in polybag

Property	Value
Sheath color:	other
Length:	1.5 m
Connection 1:	wire end ferrule
Connection 2:	wire end ferrule
Nominal voltage:	450 to 750 V
Protection class (IP):	IP20
Sheath material:	polyvinyl chloride (PVC)
Number of cores:	3
Nominal conductor cross-section:	1.5 mm²
Spiral cable:	no
With cord switch:	no
Temperature resistance:	105 to 180 °C
Oil-resistant according to EN 60811-404:	no
Connector system system-bound:	no
Frequency:	50 to 60 Hz
