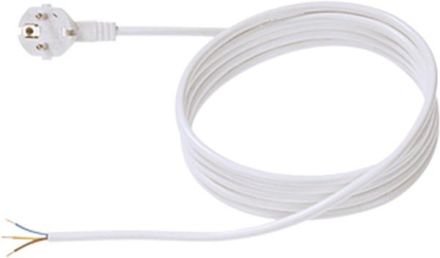

Bachmann 305.975 supply cable H05VV-F 3G1.5

In stock

SKU: 300175

Price on request

€3.68

€0

Overview

Cable SUPPLY CABLES/CONNECTION CABLES Power cable 16A/ 250V~ 3 m H05VV-F 3G 1.5 mm² grey CEE 7/7 protective contact plug with double protective contact system angle molded 30mm stripped with wire end ferrules unpacked

Property	Value
Sheath color:	gray
Length:	3 m
Connection 1:	SCHUKO plug, right-angled
Connection 2:	Wire end ferrule
Rated current:	16 A
Rated voltage:	230 to 250 V
Protection class (IP):	IP20
Sheath material:	Polyvinyl chloride (PVC)
Number of wires:	3
Conductor nominal cross-section:	1.5 mm²
Spiral cable:	no
With cord switch:	no
Temperature resistance:	70 °C
Outer diameter approx.:	7 mm
Oil-resistant according to EN 60811-404:	no
Connector system system-bound:	no
Frequency:	50 to 60 Hz
