Bachmann 320.174 320174 Protective contact - supply cable, connection cable

In stock

SKU: 443376

Price on request

€10.45

€0

Overview

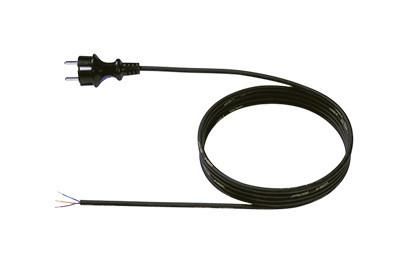

Protective contact supply cable 2m black H07RN-F 3G1.0mm -unpacked Page 1: Protective contact central plug with wire end ferrules

Property	Value
Sheath color:	black
Length:	2 m
Connection 2:	wire end ferrule
Nominal current:	16 A
Nominal voltage:	230 to 250 V
Protection class (IP):	IP20
Sheath material:	other
Number of cores:	3
Nominal conductor cross-section:	1 mm²
Spiral cable:	no
With protective conductor:	yes
With cord switch:	no
Temperature resistance:	-30 to 60 °C
Outer diameter approx.:	8.9 mm
Oil-resistant according to EN IEC 60811-404:	yes
Connector system system-bound:	no
Frequency:	50 to 60 Hz
