Bachmann 328.875 supply cable H05BQ-F 3G100

In stock

SKU: 443063

Price on request

€17.64

€0

Overview

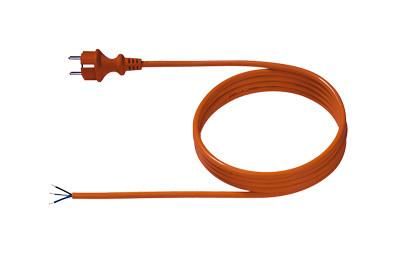

Protective contact supply cable 3m orange H05BQ-F 3G1.0mm -unpacked Page 1: Protective contact central plug with wire end ferrules

Property	Value
Sheath color:	orange
Length:	3 m
Connection 2:	Wire end ferrule
Nominal current:	16 A
Nominal voltage:	230 to 250 V
Protection class (IP):	IP20
Sheath material:	Polyurethane (PUR)
Number of cores:	3
Nominal conductor cross-section:	1.0 mm²
Spiral cable:	no
With protective conductor:	yes
With cord switch:	no
Temperature resistance:	-35 to 80 °C
Outer diameter approx.:	7.9 mm
Oil-resistant according to EN IEC 60811-404:	yes
Connector system system-bound:	no
Frequency:	50 to 60 Hz
