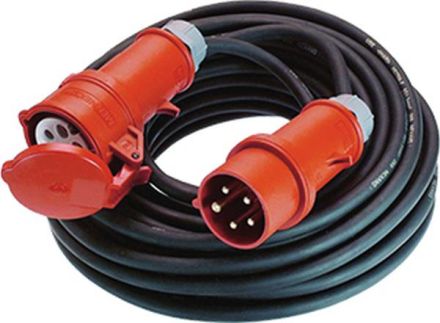

Bachmann 344.174 CEE extension H07RN-F 5G1.5 black 10m 16A

Bachmann 344.174 CEE extension H07RN-F 5G1.5 black 10m 16A

In stock

SKU: 300170

Price on request

€48.42

€0

Into a basketIn the basketGo

Overview

Cable extension power cable 16A/ 400V~ 10 m H07RN-F 5G 1, 5 mm² black CEE 16A/ 400V CEE 16A/ 400V central with phase inverter IP44 unpacked

Property	Value
Sheath color:	black
Length:	10 m
Connection 1:	CEE plug
Connection 2:	CEE coupling
Rated current:	16 A
Rated voltage:	400 V
Protection class (IP):	IP44
Sheath material:	other
Number of cores:	5
Conductor nominal cross-section:	1.5 mm²
Spiral cable:	no
With cord switch:	no
Temperature resistance:	70 °C
Outer diameter approx.:	11.5 mm
Oil-resistant according to EN 60811-404:	no
Connector system system-bound:	no
Frequency:	50 to 60 Hz

Characteristics

Sheath materialOther

Temperature resistance70 °C

Outer diameter approx.11.5 mm

Connection 1CEE plug

Oil-resistant according to EN 60811-404No

Conductor nominal cross section1.5 mm²

Spiral cableNo

Connection 2CEE coupling

With cord switchNo

Connector system system-boundNo

Manufacturer

HAN344.174

GTIN4016514003273

Wire number5

Frequency50 to 60 Hz

Length10m

Coat colorBlack

Nominal voltage400V

Rated current16A

IP protection)IP44
