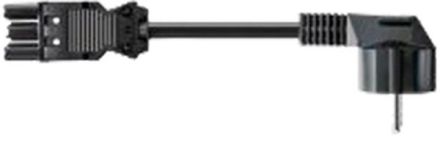

Bachmann 375.005 with GST18 14.0m device cable

In stock

SKU: 322777

Price on request

€13.59

€0

Overview

Power distributor device cable Wieland power cable 16A/ 250V~ 50Hz 4 m H05VV-F 3G 1, 5 mm² black CEE 7/7 protective contact plug angle molded Wieland GST18i3 socket centrally screwed IP20 individually wound screwed IP20 individually wound

Property	Value
Total length:	4000 mm
Version side 1:	Plug
Version side 2:	Socket
Colour of jacket:	black
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Colour of housing:	black
Protection class (IP):	IP20
Rated current:	16 A
Type of prefabricated cable:	Device connection cable
Pollution level:	2
Pole marking:	L, N, PE
Cable permanently temperature-resistant up to:	70 °C
Insulating part permanently temperature-resistant up to:	100 °C
Halogen-free:	no
Number of poles:	3
Type of locking:	integrated in the connector
Cable diameter:	82 to 83 mm
Cable type:	H05VV-F
