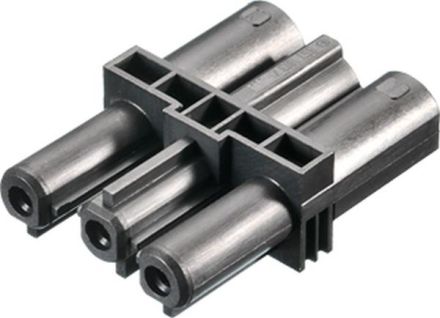

Bachmann 375.500 intermediate coupling for device plug system

In stock

SKU: 299775

Price on request

€3.21

€0

Overview

Intermediate coupling black without locking, 1x plug GST18 / 1x socket GST18 in polybag, Type: 92.030.5958.1

Property	Value
Number of connections per pole:	2
Design:	Socket
Rated voltage:	230 V
Rated impulse voltage:	4 kV
Rated current:	20 A
Width:	13 mm
Voltage resistance:	5 mOhm
Halogen-free:	no
Height:	28.2 mm
Contact material:	CuZn
Length:	39 mm
Pole marking:	L, N, PE
Number of poles:	3
Protection class (IP):	IP20
Pollution level:	2
Housing material:	Polyamide (PA)
With strain relief:	no
Type of locking:	without
Max. Continuous temperature resistance of contact part:	100 °C
