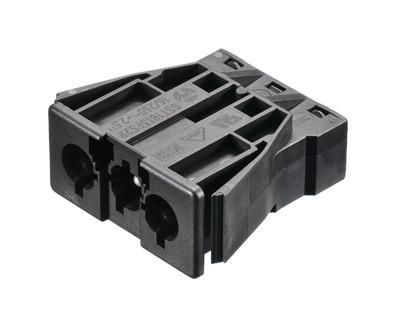

Bachmann 375.506 375506 built-in plug GST18/3 black

In stock

SKU: 443348

Price on request

€4.28

€0

Overview

Built-in plug GST18i3 black, ready for installation, can be plugged in under load, in polybag, Type: 92.032.9658.1 16A/250V

Property	Value
Connection type:	Spring-loaded connection
Number of connections per pole:	2
Design:	Plug
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	20 A
Width:	32.8 mm
Installation variant:	Snap-in/screw-in part
Color of the separate adapter piece:	without Adapter piece
Halogen-free:	yes
Height:	17.5 mm
Contact material:	CuZn
Length:	37.5 mm
Pole marking:	L, N, PE
Number of poles:	3
Protection class (IP):	IP20
Plug direction:	straight
Pollution level:	2
Housing material:	Polyamide (PA)
Connection cross-section (single-wire):	05 to 25 mm²
Connection cross-section (fine-stranded):	5 to 15 mm²
Locking type:	integrated in the connector
Housing color:	black
Max. continuous temperature resistance of contact part:	100 °C
Wall thickness of the housing:	0.5 mm
