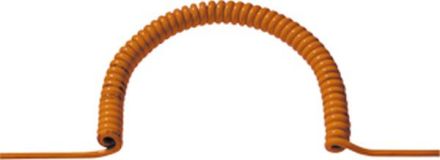

Bachmann 685.880 spiral cable H07BQ-F 5x1.5 orange

In stock

SKU: 300550

Price on request

€48.12

€0

Overview

Power distributor SPIRAL CABLE Power cable 500 mm 2,500 mm 41 mm 18 mm H07BQ-F 5G 1.5 mm² orange Side 1: 200mm straight, smooth cut Side 2: 200mm straight, smooth cut unpacked Side 2: 200mm straight, smooth cut unpacked

Property	Value
Outer diameter approx.:	11.3 mm
Sheath color:	orange
Number of cores:	3
Spiral length (closed):	500 mm
Spiral length (extended):	2500 mm
Conductor class:	Cl.5 = fine-wire
Material of core insulation:	other
Core marking:	Color
Sheath material:	Polyurethane (PUR)
Flame retardant:	according to EN 60332-1-2
Permissible external cable temperature during assembly/handling:	-35 to 80 °C
Nominal voltage U0:	450 V
Nominal voltage U:	750 V
