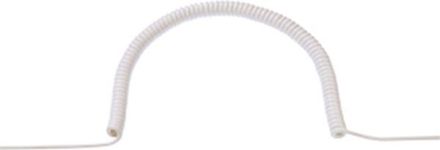

Bachmann 692.282 spiral cable CS-YMH11Y-J 3x1.5 white

In stock

SKU: 300189

Price on request

€44.59

€0

Overview

Power distributor SPIRAL CABLE Power cable 1,500 mm 7,500 mm 29 mm 13 mm YMH11Y-J 3G 1.5 mm² white 200mm straight, smooth cut 200mm straight, smooth cut unpacked 200mm straight, smooth cut unpacked

Property	Value
Outer diameter approx.:	8.5 mm
Sheath colour:	white
Number of cores:	3
Spiral length (closed):	1500 mm
Spiral length (extended):	7500 mm
Conductor class:	Cl.5 = fine-wire
Material of core insulation:	Polyvinyl chloride (PVC)
Core marking:	Colour
Sheath material:	Polyurethane (PUR)
Flame retardant:	according to EN 60332-1-2
Permissible external cable temperature during assembly/handling:	-5 to 70 °C
Nominal voltage U0:	230 V
Nominal voltage U:	500 V
