Bachmann 928.003 socket unit Elevator 1xSchuko 2xEuroStrom

In stock
SKU: 299627
€76.87
Into a basketIn the basketGo

Overview

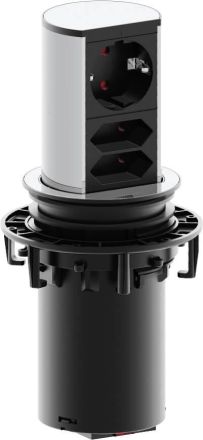

The retractable Bachmann ELEVATOR 3-way safety socket adapts perfectly to any work environment. With a diameter of 114 mm, the ELEVATOR power strip is ideal when it comes to integrating power and data connections in the smallest of spaces. The ELEVATOR extends at the touch of a thumb and is simply retracted flush when not in use. The extendable socket in stainless steel look is perfect for installation in offices or kitchen worktops, and can also be installed horizontally without any problems. ELEVATOR is available in different versions: with two or three sockets, or with one socket and two data connections. Installation is extremely simple. ELEVATOR is placed in a cutout with a diameter of 79 mm and screwed to the table top from below using a lock ring.

PropertyValue
Type:Table power strip
Color:aluminum/black
EAN:4016514061334
Manufacturer no.:928.003
Series:ELEVATOR
Intended use:Installation in table tops, Ø 79mm cut-out
Load capacity up to:3,680 watts
Max. current:16 Ampere
Power connections:Total, Euro plug sockets: 2 pieces, EU safety sockets: 1 piece
Protection:Protection class, IP20
Safety:Child protection
Material:Profile: aluminum in stainless steel look
Cable designation:H05VV-F 3G1.5mm²
Feature:Subsequent installation possible, suitable for panel thickness from 16 to 60mm, extension height 100mm
Further information:Supply cable with wire end ferrule, incl. enclosed Protective contact mounting plug
Note:Installation depth without cable 135mm
Accessories:available, assembly instructions
Dimensions:Power strip, width: 114 mm x height: 230 mm

Characteristics

EAN4016514061334
NoteInstallation depth without cable 135mm
SafetyChild protection
ManufacturerBachmann
HAN928.003
GTIN4016514061334
DimensionsPower strip, width: 114 mm x height: 230 mm
FeatureSubsequent installation possible, suitable for panel thickness from 16 to 60 mm, extension height 100 mm
Manufacturer No.928.003
MaterialProfile: Aluminium in stainless steel look
SeriesELEVATOR
TypeTable power strip
Purpose of useInstallation in table tops, Ø 79 mm cutout
Further informationSupply cable with wire end ferrule, including enclosed protective contact mounting plug
AccesoriesAvailable, assembly instructions
