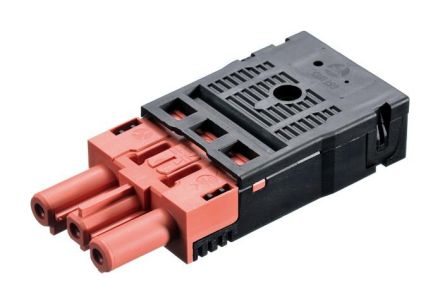

Bachmann 940.070 940070 device coupling with GST18 bright red

In stock
SKU: 443300
€8.08
Into a basketIn the basketGo

Overview

Device coupling GST18i3 red, ready for installation, can be plugged in under load, in polybag, 92.933.0553.0

PropertyValue
Design:Socket
Connection type:Spring-loaded connection
Number of connections per pole:2
Rated voltage:250 V
Rated impulse voltage:4 kV
Rated current:20 A
Width:32.5 mm
Halogen-free:yes
Height:15.5 mm
Contact material:CuZn
Length:75 mm
Pole marking:L, N, PE
Number of poles:3
Protection class (IP):IP20
Pollution level:2
Housing material:Polyamide (PA)
With strain relief:yes
Connection cross-section (single-wire):05 to 25 mm²
Connection cross-section (fine-wire):0 to 5 mm²
Locking type:integrated in the connector
Cable diameter:103 mm
Max. continuous temperature resistance of contact part:100 °C

Characteristics

Cable diameter103 mm
Rated surge voltage4 kV
ManufacturerBachmann
HAN940.070
GTIN4016514023998
Connection typeSpring-loaded connection
VersionRifle
Rated voltage250V
Rated current20A
Width32.5 mm
Halogen freeYes
Height15.5 mm
Length75 mm
With strain reliefYes
Number of poles3
IP protection)IP20
Degree of contamination2
Housing materialPolyamide (PA)
