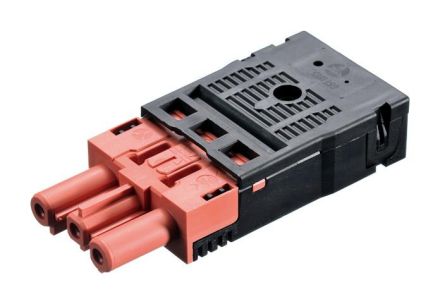

Bachmann 940.071 940071 device coupling with GST18 pebble grey

In stock

SKU: 443299

Price on request

€8.08

€0

Overview

Device coupling GST18i3 grey, ready for installation, can be plugged in under load, in a polybag, 92.933.0153.0

Property	Value
Design:	Socket
Connection type:	Spring-loaded connection
Number of connections per pole:	2
Rated voltage:	250 V
Rated impulse voltage:	4 kV
Rated current:	20 A
Width:	32.5 mm
Halogen-free:	yes
Height:	15.5 mm
Contact material:	CuZn
Length:	75 mm
Pole marking:	L, N, PE
Number of poles:	3
Protection class (IP):	IP20
Pollution level:	2
Housing material:	Polyamide (PA)
With strain relief:	yes
Connection cross-section (single-wire):	05 to 25 mm²
Connection cross-section (fine-wire):	0 to 5 mm²
Locking type:	integrated in the connector
Cable diameter:	103 mm
Max. continuous temperature resistance of contact part:	100 °C
