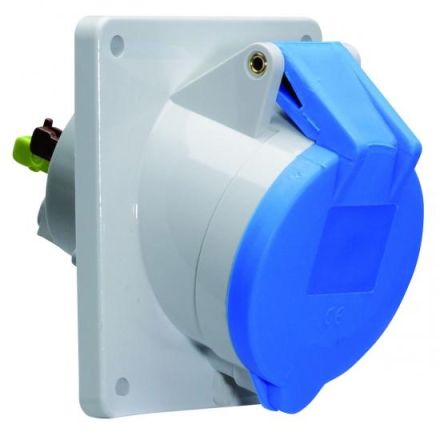

Quick-Connect inclined socket 32A 3p (2P+PE) 230V (200 to 250V) 6h IP44, Frequency: 50 and 60Hz, Technical identification color: blue RAL 5015, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 10.0 mm², Housing material: polyamide, Connection technology: screwless spring clamp technology as cage clamp with Kontex contact, Cable entry: other Device color: hinged lid blue RAL 5015, housing gray RAL 7035 Device height: 101 mm, Device width: 92 mm, Device depth: 117 mm, Flange dimension vertical: 100 mm, Flange dimension horizontal: 92 mm, Drill hole spacing vertical: 85 mm, Drill hole spacing horizontal: 77 mm, Other technical properties: The inclination is 20°
