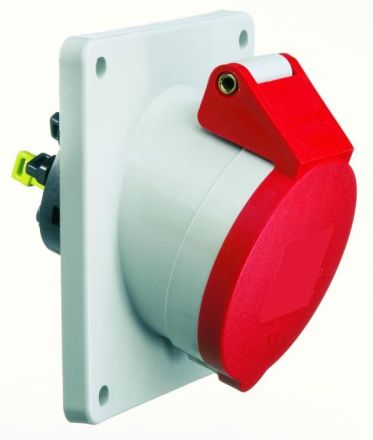

Bals 12801 32A 5-pin 400V IP44 panel socket

In stock
SKU: 704485
€24.21
Into a basketIn the basketGo

Overview

Quick-Connect inclined socket 32A 5p (3P+N+PE) 400V (200/346 to 240/415V) 6h IP44, Frequency: 50 and 60Hz, Technical identification color: red RAL 3000, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 10.0 mm², Housing material: polyamide, Connection technology: screwless spring clamp technology as cage clamp with Kontex contact, Cable entry: other Device color: hinged lid red RAL 3000, housing gray RAL 7035 Device height: 103 mm, Device width: 92 mm, Device depth: 113 mm, Flange dimension vertical: 100 mm, Flange dimension horizontal: 92 mm, Drill hole spacing vertical: 85 mm, Drill hole spacing horizontal: 77 mm, Other technical properties: The inclination is 20°

PropertyValue
IEC current:32 A
Number of poles:5
Connection technology:screwless terminal
Plug direction:angled
Voltage according to EN 60309-2:400 V (50+60 Hz) red
Time setting:6 h
Identification color:red
Protection class (IP):IP44
Material:plastic
Military version:no
Hole spacing horizontal:77 mm
Hole spacing vertical:85 mm
Flange dimension horizontal:92 mm
Flange dimension vertical:100 mm
RAL number:3000

Characteristics

HAB12801 32A 5-pole 400V IP44
ManufacturerBals
HAN12801
GTIN4024941128018
Connection technologyScrewless terminal
IEC current32 A
Identification colorRed
Military versionNo
Number of poles5
RAL number3000
IP protection)IP44
Voltage according to EN 60309-2400 V (50+60 Hz) red
Plug directionAngled
Time position6 hours
MaterialPlastic
