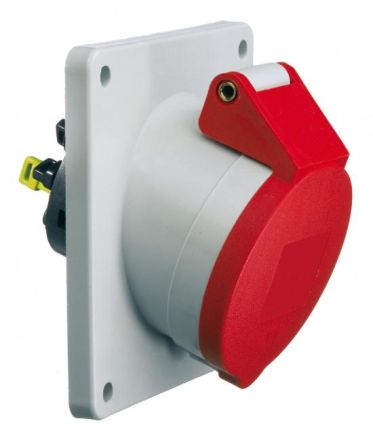

Quick-Connect inclined panel socket, 16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44, Frequency: 50/60Hz, Technical identification colour: red RAL 3000, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 4.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology as cage clamp with Kontex contact, Cable entry: other, Device colour: hinged lid red RAL 3000, Housing grey RAL 7035, Device height: 110 mm, Device width: 110 mm, Device depth: 96 mm, Flange dimension vertical: 110 mm, Flange dimension horizontal: 110 mm, Drill hole spacing vertical: 90 mm, Drill hole spacing horizontal: 90 mm, Other technical properties: The inclination is 20°
