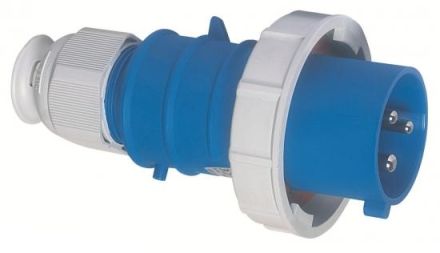

QUICK-CONNECT TE Plus plug with MULTI-GRIP screw connection 16A 3p (2P+PE) 230V (200 to 250V) 6h IP67, Frequency: 50 and 60Hz, Technical identification colour: blue RAL 5015, Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, The contacts are nickel-plated brass, Maximum conductor cross-section: 2.5 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology with cage clamps, Cable entry: Screw connection Device colour: Collar blue RAL 5015, Bayonet ring grey RAL 7035, Cable screw connection grey RAL 7035, Housing cover blue RAL 5015 Device height: 147 mm, Device width: 71 mm, Device depth: 71 mm, Other technical properties: For cables with a min. diameter of 8mm to max. diameter 18mm, with Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
