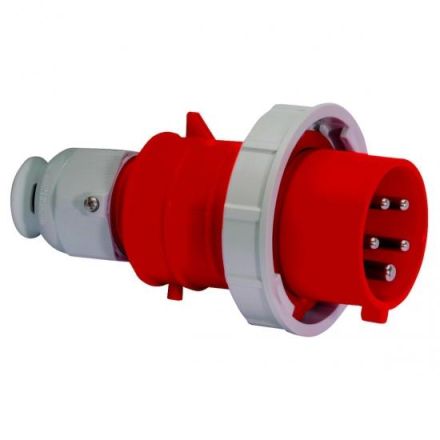

QUICK-CONNECT TE Plus plug with MULTI-GRIP screw connection 16A 5p (3P+N+PE) 400V (200/346 to 240/415V) 6h IP67, Frequency: 50 and 60Hz, Technical identification color: red RAL 3000, Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, The contacts are nickel-plated brass, Maximum conductor cross-section: 2.5 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology with cage clamps, Cable entry: Screw connection Device color: Housing cover red RAL 3000, collar red RAL 3000, cable gland gray RAL 7035 Device height: 154 mm, Device width: 87 mm, Device depth: 87 mm, Other technical properties: For cables with a min. diameter of 10mm to max. diameter 21mm, with Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
