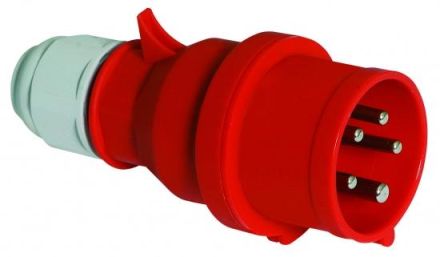

QUICK-CONNECT plug with MULTI-GRIP screw connection 32A 5p (3P+N+PE) 400V (200/346 to 240/415V) 6h IP44, Frequency: 50 and 60Hz, Technical identification colour: red RAL 3000, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 6.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology with cage clamps, Cable entry: Screw connection Device colour: Housing cover red RAL 3000, collar red RAL 3000, cable gland grey RAL 7035 Device height: 178 mm, Device width: 79 mm, Device depth: 88 mm, Other technical properties: With Multi-Grip cable gland and integrated strain relief, The connection of the housing parts is screwless and is locked by a snap lock. Can be opened using a screwdriver. For cables with a minimum diameter of 11mm to a maximum diameter of 23mm
