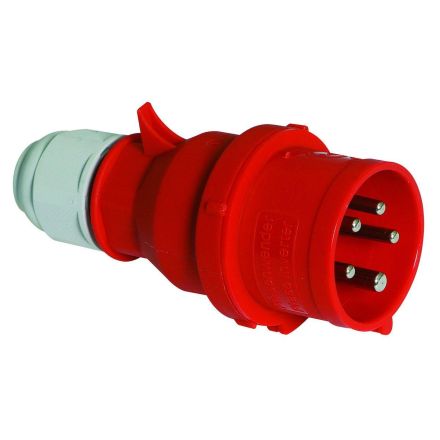

Phase inverter QUICK-CONNECT with MULTI-GRIP screw connection, 32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44, Frequency: 50/60Hz, Technical identification colour: red RAL 3000, Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are nickel-plated brass, Maximum conductor cross-section: 6.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology with socket spring terminals, Cable entry: Screw connection, Device colour: Collar red RAL 3000, Cable gland dark grey RAL 7012, Housing cover dgu RAL 7012, Device height: 178 mm, Device width: 79 mm, Device depth: 88 mm, Other technical properties: With Multi-Grip cable gland and integrated Strain relief, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible, For cables with a min. diameter of 11mm to max. diameter of 23mm
