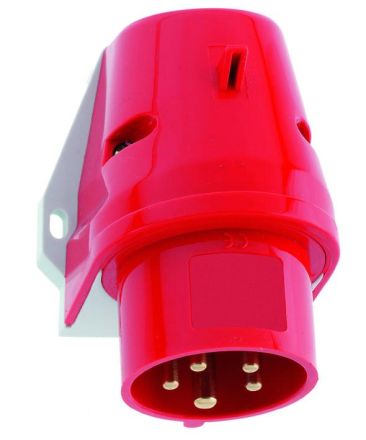

Wall device plug Quick-Connect 32A 5p (3P+N+PE) 400V (200/346 to 240/415V) 6h IP44, Frequency: 50 and 60Hz, Technical identification color: red RAL 3000, Housing size: 92x94 mm (HxW), Contact carrier/contacts: The contact carrier is made of polyamide, The contacts are bare brass, Maximum conductor cross-section: 6.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology with cage clamps, Cable entry: 1xM25 at the top Device color: Housing upper part red RAL 3000, collar red RAL 3000, housing lower part gray RAL 7035 Device height: 133 mm, Device width: 94 mm, Device depth: 87 mm, Other technical properties: The cable entry is open at the top and closed at the bottom
