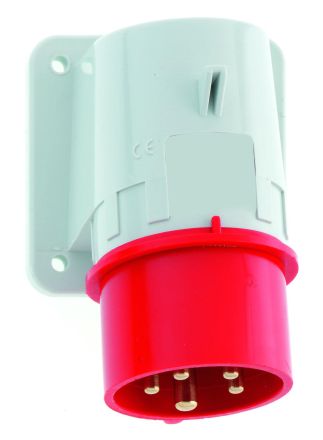

Surface-mounted device plug Quick-Connect TE, 16A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44, Frequency: 50/60Hz, Technical identification color: red RAL 3000, Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, The contacts are nickel-plated brass, Maximum conductor cross-section: 2.5 mm², Housing material: polyamide, Connection technology: screwless spring clamp technology with cage clamps, Cable entry: other, Device color: collar red RAL 3000, housing gray RAL 7035, Device height: 129 mm, Device width: 84 mm, Device depth: 78 mm, Flange dimension vertical: 84 mm, Flange dimension horizontal: 84 mm, Drill hole spacing vertical: 64 mm, Drill hole spacing horizontal: 64 mm
