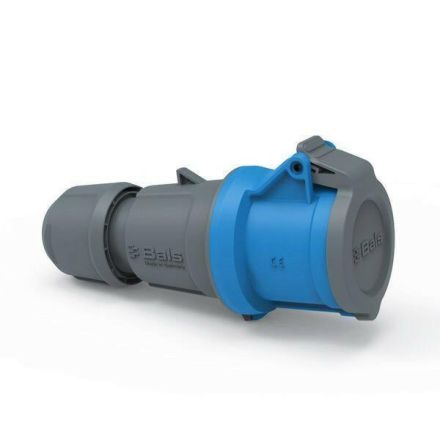

Coupling INNOLINQ QC 32A 3p (2P+PE) 230V (200 - 250V~) 6h IP54 Frequency: 50/60Hz Technical identification colour: blue RAL 5015 Contact carrier/contacts: the contacts are bare brass, the contact carrier is made of highly heat-resistant material Maximum conductor cross-section: 6.0 mm² Housing material: polyamide Connection technology: screwless spring clamp technology as cage clamp with KONTEX-ULTRA contact Cable entry: with cable gland Device colour: hinged cover dark grey RAL 7012, collar blue RAL 5015, cable gland dark grey RAL 7012, housing cover dark grey RAL 7012 Device height: 205 mm, device width: 80 mm, device depth: 99 mm Halogen-free: yes Other technical properties: this product does not contain any lead, with MULTI-GRIP cable gland and integrated Strain relief, The connection of the housing parts is screwless and is locked by a snap lock. Opening with a screwdriver is possible, For cables with a min. diameter of 13mm to max. diameter of 29mm
