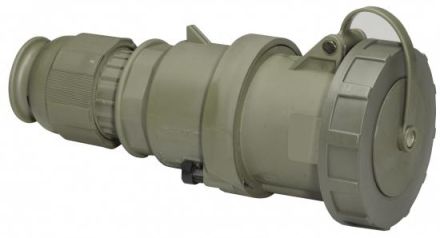

Coupling TN, 63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67, Frequency: 50/60Hz, Technical identification colour: bronze green RAL 6031-F9, Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, The contacts are nickel-plated brass, Maximum conductor cross-section: 16.0 mm², Housing material: Polyamide, Connection technology: Screw terminals as box terminals with Kontex contact, Cable entry: Screw connection, Device colour: Actuating slide black RAL 9005, Cable gland bronze green RAL 6031-F9, Bayonet ring bronze green RAL 6031-F9, Housing cover bronze green RAL 6031-F9, Collar bronze green RAL 6031-F9, Hinged cover bronze green RAL 6031-F9, Device height: 256 mm, Device width: 111 mm, Device depth: 115 mm, Other technical features: A pilot contact is available, For cables with a min. diameter of 16 mm to max. diameter of 36 mm, With Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw, The bayonet cover is attached to the housing with a fastening strap, VG type no.: VG 96919 DS 009, Supply no.: 5935-12-300-5326
| Property | Value |
| IEC current: | 63 A |
| Number of poles: | 5 |
| Connection technology: | screw terminal |
| Plug direction: | straight |
| Cable entry: | screw connection |
| Voltage according to EN 60309-2: | 400 V (50+60 Hz) red |
| Time setting: | 6 h |
| Identification color: | green |
| Protection class (IP): | IP67 |
| Material: | Plastic |
| Military version: | yes |
