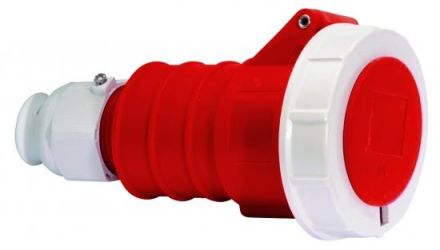

QUICK-CONNECT TE coupling, 32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67, Frequency: 50/60Hz, Technical identification color: red RAL 3000, Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, The contacts are nickel-plated brass, Maximum conductor cross-section: 6.0 mm², Housing material: Polyamide, Connection technology: screwless spring clamp technology as cage clamp with Kontex contact, Cable entry: Screw connection, Device color: Hinged cover red RAL 3000, Housing red RAL 3000, Bayonet ring gray RAL 7035, Cable gland gray RAL 7035, Device height: 196 mm, Device width: 101.5 mm, Device depth: 106 mm, Other technical properties: For cable with a min. diameter of 13mm to max. diameter of 27mm, with Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
