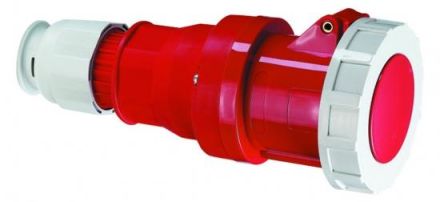

Coupling, 63A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67, Frequency: 50/60Hz, Technical identification colour: red RAL 3000, Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, The contacts are nickel-plated brass, Maximum conductor cross-section: 16.0 mm², Housing material: Polyamide, Connection technology: Screw terminals as box terminals with Kontex contact, Cable entry: Screw connection, Device colour: Housing cover red RAL 3000, collar red RAL 3000, hinged cover red RAL 3000, bayonet ring grey RAL 7035, cable gland grey RAL 7035, Device height: 251 mm, Device width: 110 mm, Device depth: 115 mm, Other technical properties: For cables with a min. diameter from 16mm to max. diameter 36mm, with Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw
