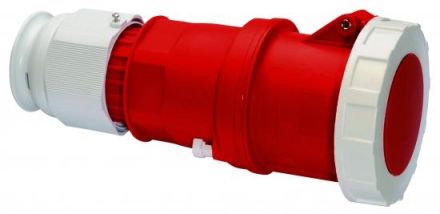

Bals 3199 125A 5p 400V 6h IP67 coupling

In stock
SKU: 704490
€196.32
Into a basketIn the basketGo

Overview

TE coupling, 125A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP67, Frequency: 50/60Hz, Technical identification colour: red RAL 3000, Contact carrier/contacts: The contact carrier is made of highly heat-resistant material, The contacts are nickel-plated brass, Maximum conductor cross-section: 50.0 mm², Housing material: Polyamide, Connection technology: Screw terminals as box terminals with Kontex contact, Cable entry: Screw connection, Device colour: Housing cover red RAL 3000, Collar red RAL 3000, Hinged cover red RAL 3000, Bayonet ring grey RAL 7035, Cable gland grey RAL 7035, Device height: 295 mm, Device width: 125 mm, Device depth: 128 mm, Other technical properties: For cables with a Min. diameter from 26mm to max. diameter 50mm, with Multi-Grip TE cable gland, integrated strain relief, additional water drainage openings and locking screw

PropertyValue
IEC current:125 A
Number of poles:5
Connection technology:screw terminal
Plug direction:straight
Cable entry:screw connection
Voltage according to EN 60309-2:400 V (50+60 Hz) red
Time setting:6 h
Identification color:red
Protection class (IP):IP67
Material:Plastic
Military version:no
RAL number:3000

Characteristics

HAB3199 125A 5p 400V 6h IP67
ManufacturerBals
HAN3199
GTIN4024941031998
Connection technologyScrew terminal
IEC current125A
Cable entryScrew connection
Identification colorRed
Military versionNo
Number of poles5
RAL number3000
IP protection)IP67
Voltage according to EN 60309-2400 V (50+60 Hz) red
Plug directionStraight
Time position6 hours
MaterialPlastic
