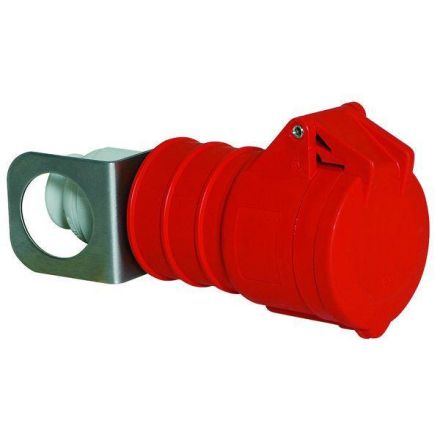

Hanging coupling QUICK-CONNECT TE 32A 5p (3P+N+PE) 400V (200/346 - 240/415V~) 6h IP44 Frequency: 50/60Hz Technical identification color: red RAL 3000 Contact carrier/contacts: the contact carrier is made of highly heat-resistant material, the contacts are nickel-plated brass Maximum conductor cross-section: 6.0 mm² Housing material: polyamide Connection technology: screwless spring clamp technology as cage clamp with Kontex contact Cable entry: screw connection Device color: hinged cover red RAL 3000, housing red RAL 3000, cable gland gray RAL 7035 Device height: 212 mm, device width: 72 mm, device depth: 99 mm Other technical properties: For cables with a min. diameter of 13 mm to max. diameter of 27 mm, with MULTI-GRIP TE Cable gland, integrated strain relief, additional water drainage openings and locking screw
