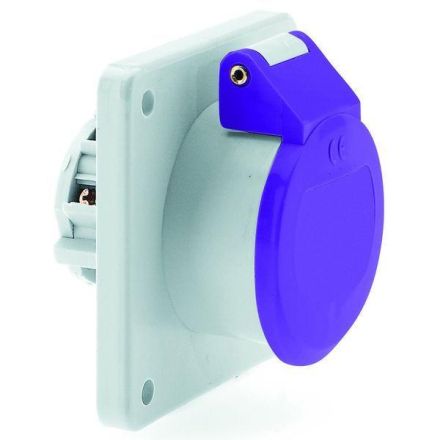

Low voltage panel socket straight 16A 2p (2P) 24V (20 to 25V) no auxiliary lug or groove IP44 Frequency: 50/60Hz Technical identification colour: violet RAL 4005 Contact carrier/contacts: the contact carrier is made of polyamide, the contacts are nickel-plated brass Maximum conductor cross-section: 10.0 mm² Housing material: polyamide Connection technology: with screw terminal Cable entry: other Device colour: housing grey RAL 7035, hinged cover violet RAL 4005 Device height: 67 mm, device width: 55 mm, device depth: 59 mm Flange dimension vertical: 55 mm, flange dimension horizontal: 55 mm Hole spacing vertical: 45 mm, hole spacing horizontal: 45 mm
